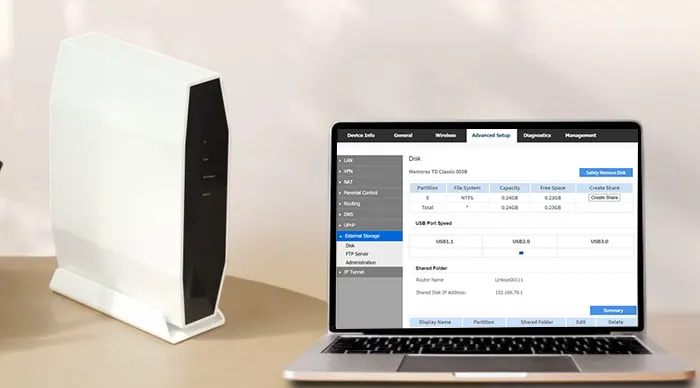

How to setup Linksys E9450 router- Detailed Guide to Follow
Find detailed info on the Linksys E9450 Mesh Setup and Troubleshooting process.
Mesh routers have taken the networking industry by storm. By eliminating the need for extender devices, and introducing the concept of whole home network coverage, it has revolutionized the way people connect to the internet. One such mesh enabled device allowing access to internet on the go is Linksys E9450 setup. Powered by the WiFi 6 network technology, you can enjoy faster internet speeds, better connectivity at low latency and easy device management. If you have purchased one of these super-capable devices, this blog will reveal the next steps to ensure seamless internet connectivity at your home.
Things to know before you setup Linksys E9450
When you purchase your Linksys E9450 router, the default setting is for use as a Child Node. To continue with the setup and use, you will need to use the built-in setup wizard to configure the router for the first-time setup. During this process, the router will be configured to work as a Parent Node. Another Linksys E9450 router can be configured to work as a child node. These child nodes will be used to extend the WiFi network.
Now, before you set things up, you will need access to an active internet connection. A computer or a wireless device like a tablet or a smartphone will also be required to configure the settings manually. This setup process will require you to fetch the default WiFi name and the Linksys E9450 default password details. These Linksys E9450 router login details are readily available on the product label you can find at the bottom or in the user manual that comes in the box. Once you have these details and have met these requirements, you can begin with the Installation process and internet setup.
Linksys E9450 Mesh Setup- Noteworthy Features
The Linksys E9450 setup is powered by intelligent Mesh Technology and dual-band support that helps these routers deliver seamless internet speeds. These models are among the latest additions in the Linksys galore. With access to a 160MHz channel, these routers can help unleash the true power of the WiFi 6 network bandwidth and help you accomplish tasks without a break.
The Linksys E9450 comes equipped with a range of features that makes it stand out from the rest. Here is a brief overview of the same:
Easy steps on how to setup Linksys E9450 router
Once you have everything with you for the setup process, you can proceed with the steps as mentioned:
- Connect your Linksys E9450 setup to your MODEM or MODEM router.
- Power cycle the MODEM and then connect to the main router.
- Turn on the power on your router and wait for the power and WiFi indicator lights on the device to turn solid blue.
- Connect the wireless router that you will be using to set up the router to the default WiFi name of the router. You can also use the Guest network SSIDs of the router. The Linksys e9450 default password details can be found at the bottom of the router.
- Launch a web browser and type in the default IP address 192.168.79.1 and then hit Enter. This will take you to the Linksys E9450 router login page. You can also use ‘linksyssmartwifi.com e9450’ to access the login page.
- Enter the default username and password details and then click on the Apply button. The default username and password you can use is admin. Once entered, click on the Apply button and you’ll be logged in to the setup wizard.
Configuring the Network Settings
- From the next screen, click on the Next button.
- The setup wizard will ask you to create a new router password. Type in the Linksys E9450 router login wifi password you wish to keep and click on the Next button once done.
- The router password will now change.
- From the “What are your setting up?” screen, click on the ‘A parent node’ button.
- Select the region from the drop-down menu and click on the Next button.
- Create a WiFi name and Password from the next window and click on Next once the same is done.
- The setup wizard will apply the settings which might take about 90 seconds to complete.
- After the settings are saved, the set up wizard will prompt you to connect your computer/wireless router to the new WiFi you created. Click on the Next button to continue to the setup wizard.
- Click on the Next button and you can proceed with setting up a Node next. If you don’t want to set up a node at this time, simply click on ‘No I’m done’ and you can add the child nodes later on.

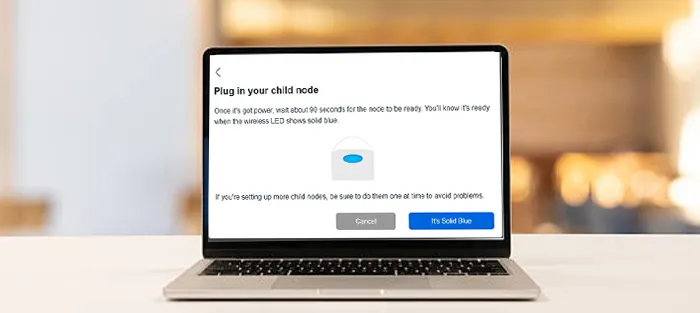

Adding Child Nodes to the Router
To proceed with the setup process for your Child Nodes, you can follow the steps as mentioned:
- Connect your modem to the router and click on the Next button on the setup wizard to proceed.
- The setup wizard will detect the internet connection which might take a few minutes. Once the connection is detected, the internet indicator light on the front panel of the router will turn to Blue. If no internet connection is detected, you can power cycle your modem and wait until it's ready and click on the Try Again button.
- Click on ‘Check for the Latest Firmware Now’ button. If a new firmware version is available, you can proceed with installing the update. Otherwise, click on the I’m Done button.
- The parent node is now successfully configured with your child node added successfully. If you ever need to run the setup wizard again, just reset the router before setting it up again.
You can now proceed with connecting your devices to the network you just set up and start accessing seamless internet.

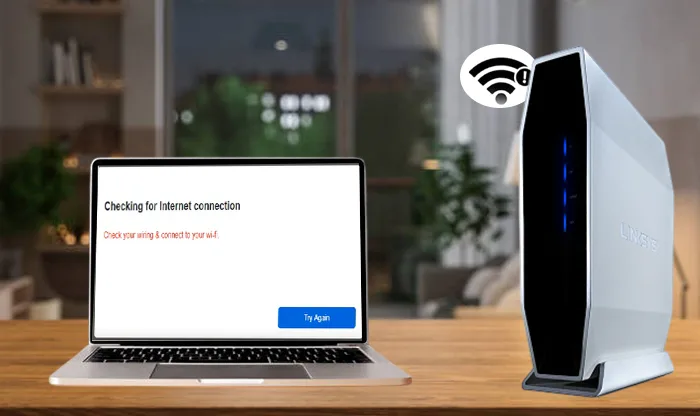

Can't connect to Linksys E9450?
If the linksys router E9450 setup is not online, you can proceed with the steps below:
- From the main router setup wizard, head to General and then click on the Internet Setup menu.
- Skip to the section on the type of internet connection that you need and start following the steps for the Bridge Mode.
- If there are any internet profiles for the device, check the box and click on the Remove button.
- Select Bridge Mode and click on the Apply button.
- Copy the link provided to access the Linksys router after the Bridge Mode is set and click on the Ok button.
- Once the settings take effect, reconnect to your WiFi and make sure that you are online. Your router will now be set up in Bridge mode. You can now create a new internet profile.
Creating a New Internet Profile
- By default there is an existing DHCP profile which you will need to edit. Remove the same and create it again.
- From the WAN Service Configuration window, click on the Add button. For now, we will continue to Automatic Configuration- DHCP and then click on Next. If you choose PPPoE, you will be prompted to enter the username and password credentials provided to you by your ISP(Internet Service Provider). If you don’t have access to these, you’ll need to connect with your ISP and fetch the same.
- For the Automatic Configuration -DHCP Setup, you can leave the first option checked and then click on the Next button. For Advanced users, you can enter the Static DNS servers if required.
- Once done click on the Apply/Save button. Once you click on the same, you will be taken back to the Internet Setup page using your new internet profile.
- Allow some time for the internet status lights on the router to turn solid blue. Once they are, the internet connection will start working. If you still can’t connect to Linksys E9450 router network, and see AMber color on the LED, try restarting the router and the modem both. This will clear the session cache and will fix the connectivity issues, if any.
Your Linksys E9450 mesh setup is now complete. Connect your wireless devices to the network you have just set up and start accessing the web on the go.
Resolving WiFi connection issues with your Linksys E9450 Setup
The Wi-Fi connectivity among your wireless devices may be affected by obstructions and incompatible security settings. Here are some steps you can follow to alleviate WiFi connection issues:
-
Router/WiFi devices need refresh
Power cycle your wifi router to refresh the wifi connection. Power off the router and unplug the power cord from it. Allow some 10 seconds and plug the cord back in. Turn on the power supply and make sure the Power LED is solid white. -
Distance from the router
For stable wifi connectivity, make sure your computer/smartphone is within range of the wireless router. If there’s interference from neighboring wireless devices such as microwaves, cordless phone, etc. relocate them to a different place. You can also try changing the WIreless router channel. -
Incorrect password
If you are connecting to a secured wireless network, you will need the correct WPA2-PSK security key/password. If the same has been changed/altered, you will see errors while trying to access the same. You can check the password by logging in to the Linksys E9450 setup wizard and crosschecking the details. If that doesn’t work, you can follow the Linksys E9450 reset password process to recover the details and proceed with the setup again.
